Digital screen making process:
1. Prepare artwork in PC
2. Stretch screen film onto a frame
3. Machine print artwork on screen film directly
4. Screen created
Advantages:
No need following steps:
positive film, emulsions, expose, washout, dry.
Quick and easy, about 50s to get an A4 screen.
PS: The created screen is suitable for automatic printing machine.
|
High Speed Digital Screen Printing Machine
|

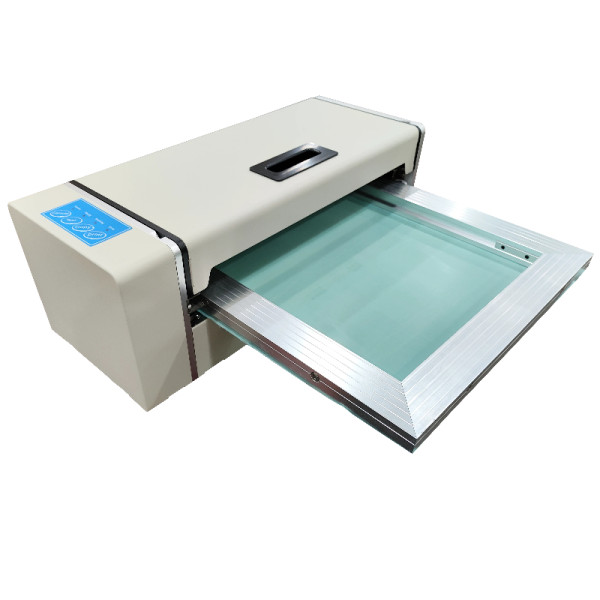

Screen Plate Maker Making Machine
|
|
Operation System
|
Windows System
|
|
Design Software
|
CorelDRAW, Adobe llustrator, etc
|
|
Max Printing Width
|
216 mm
|
|
Max Printing Speed
|
10 mm/s
|
|
Fixed Frame outer diameter width
|
370 mm
|
|
Max Image Printing Size
|
216 mm, no limit of length theoretically
|
|
Print Resolution
|
200 DPI
|
|
Print Density
|
11.8 dots/ mm
|
|
Frame Thickness
|
25 mm - 30 mm
|
|
Connection
|
Full Speed USB 2.0
|
|
Power & Voltage
|
AC, 150 W, 110 V - 240 V (Support Customization)
|
|
Print Head Life
|
150000 m (eg: it can print 500000 pcs of 30 cm image length
|
|
Packaging Dimension
|
740 mm * 360 mm * 350 mm, 0.09 CBM, about 22.5 kg
|
