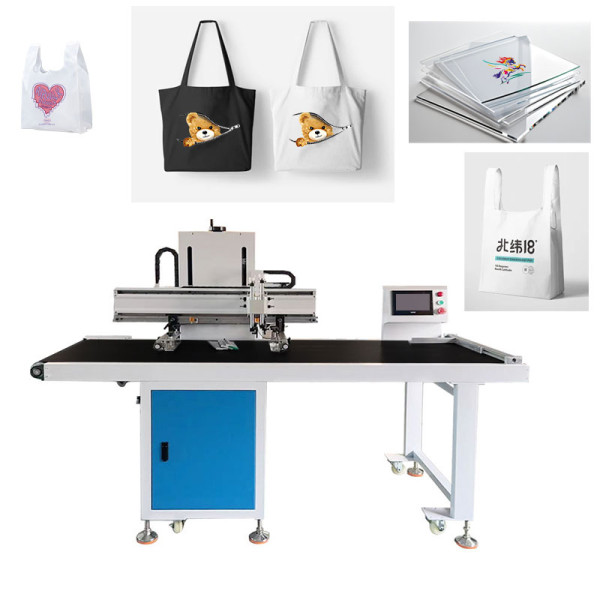

Vertical Screen Printing Machine With Belt

Description

Item	Value
Printing Colors	1 color
Single Cycle	Yes
Continuous Movement	Yes
Item Counting	Yes
Speed Adjustment	Yes
Delay for Each Part	Yes
Printing Speed	800-1000 times/hour
Maximum Screen Frame	400mm x 600mm
Maximum Printing Area	350mm x 300mm
Workpiece Height	0mm-120mm
Screen Frame Lifting Stroke	250mm
Squeegee Horizontal Stroke	500mm
Screen Frame Height Adjustment	130mm
Automatic Screen Lifting Stroke	20mm
Squeegee/Edge Squeegee Vertical Stroke	25mm
Drive	Motor
Control System	Microcomputer
Control Voltage	12VDC
Power Supply Voltage	220VAC 50/60Hz
Connection Load	220W
Pneumatic power supply	6 bar
Dimensions	800mm x 800mm x 1420mm
Weight	Approx. 150kg
